Facility ~ Equipment

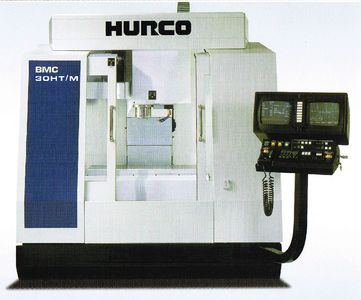

Hurco BMC 30 HT/M Vertical Machining Center (1995)
- 15 Hp. 8000 RPM spindle
- Axis 30” x 18” x 24”
- Rigid Tapping
- DXF Capable
- 24 position ATC
- Haimer Digital 3D probe
- Manually-operated 4th axis trunnion table
- Custom designed turning fixture allows Hurco to be used as a CNC lathe
- Turning capacity 4” dia x 6”
Hurco VM1 Vertical Machining Center (2004)
- 15 Hp. 8000 RPM spindle
- Axis 26” x 14” x 18”
- Rigid Tapping
- DXF Capable
- 16 position ATC
- Haimer Digital 3D probe
Brown & Sharpe Gage 2000 CMM Machine
- Measuring range 18” x 20” x 16”
- PCDMIS software
- Renishaw MIP indexing probe head
- Customized inspection reports available
- Also equipped with a Titan TCP-III Optical projector for using CMM as an optical measuring device with 10x – 30x magnification
- Environmental controlled inspection lab
Mitsui High-tec MSG-205MH Surface Grinder
- Walker 6" x 18" electromagnetic chuck
- Digital readout
- Optidress wheel dresser
- Graymills coolant system
- Mitsui world class high precision

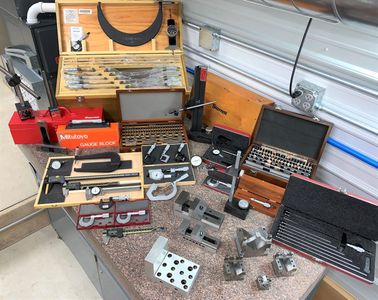

Inspection ~ Gaging ~ Precision Tools
- Extensive collection of precision measuring tools
- Grade A-1 Precision Gage block sets
- Class X and Z gage pins
- Precision Micrometers 0-12" range
- Precision fixturing and vises
- Hermann Schmidt 6" magnetic squaring chuck
- Tru-stone 36” x 60” Granite Surface Plate - Grade AA Laboratory
Inspection ~ Gaging ~ Precision Tools
- Extensive collection of precision measuring tools
- Mitutoyo digital indicator .00002" resolution
- Precision test indicators .00005" resolution
- Precision Micrometers 0-6" range .0001" res.
- Precision fixturing and vises
- Starrett 12” x 18” Granite Surface Plate - Grade A Inspection
- Mitutoyo 12” x 18” Granite Surface Plate - Grade A Inspection

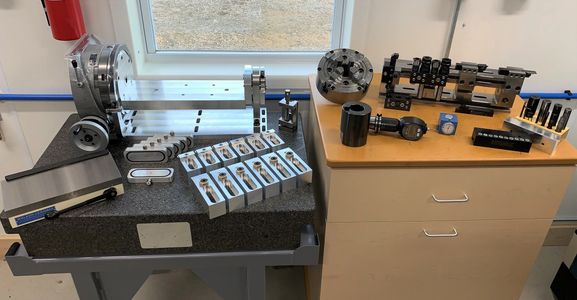

Workholding ~ Toolholding ~ Precision Tools
- Custom designed 4th axis trunnion table
- Custom designed turning fixture allows Hurco to be used as a CNC lathe
- Custom designed Kurt edge clamping fixtures
- Walker 6 X 12" Ceramax magnetic chuck
- Vacuum clamping pods
- Tru-stone 24” x 36” Granite Surface Plate - Grade A Inspection
Workholding ~ Toolholding ~ Precision Tools
- Custom designed and built 4th axis trunnion table
- Accurate indexing to any angle
- Accommodates a Kurt 4" precision vise
- Can also be set up with a pallet system

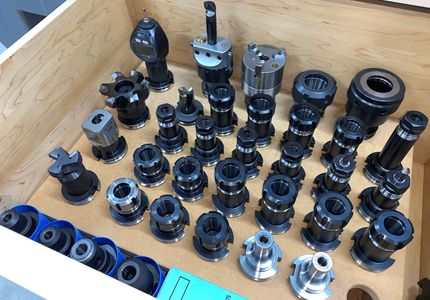

Workholding ~ Toolholding ~ Precision Tools
- Haimer Digital 3D probe
- High precision Nikken boring head
- High precision Seco boring head
- Big Kaiser micro toolholders
- Quality assortment of toolholders
